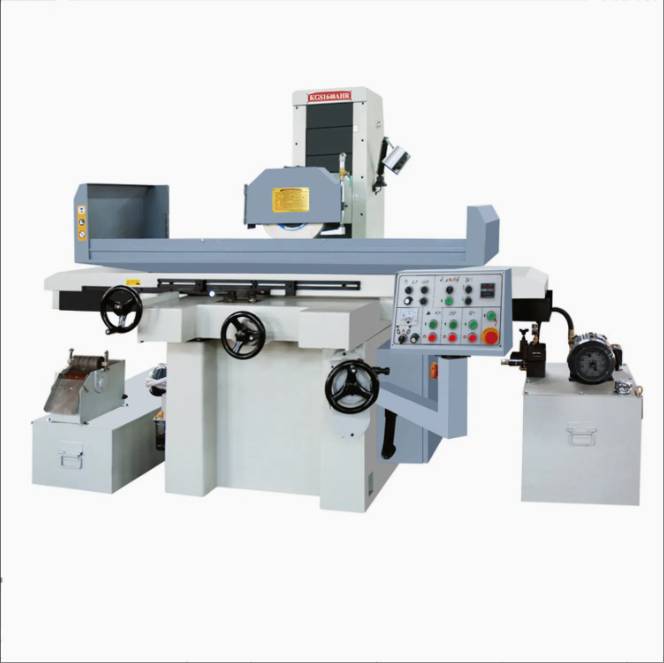

SURFACE GRINDING MACHINE (Standard Industrial Type)

A grinding machine is a power tool used to remove material from a workpiece by means of an abrasive wheel. It’s primarily used for precision machining to achieve fine surface finishes and accurate dimensions. Grinding is often the final step in manufacturing, after cutting or shaping.

Specifications of SURFACE GRINDING MACHINE (Standard Industrial Type)

Parameter	Specification
Machine Type	Horizontal Surface Grinding Machine
Table Size	600 mm x 300 mm
Max. Table Travel (X-axis)	650 mm
Cross Travel (Y-axis)	350 mm
Vertical Travel (Z-axis)	300 mm
Grinding Wheel Size	355 mm x 38 mm x 127 mm
Wheel Speed	2800 RPM
Spindle Motor Power	3 HP (2.2 kW)
Feed Mechanism	Manual / Hydraulic / CNC (depends on model)
Surface Finish	Up to 0.2 μm Ra
Grinding Accuracy	±0.002 mm
Work Table Drive	Hydraulic or Manual
Coolant System	In-built with filter and coolant pump
Machine Weight	Approx. 1500 – 2500 kg
Power Supply	415 V, 3 Phase, 50 Hz
Control System	Manual / PLC / CNC
