Specifications of QUALITY TESTING MACHINES (By Type)

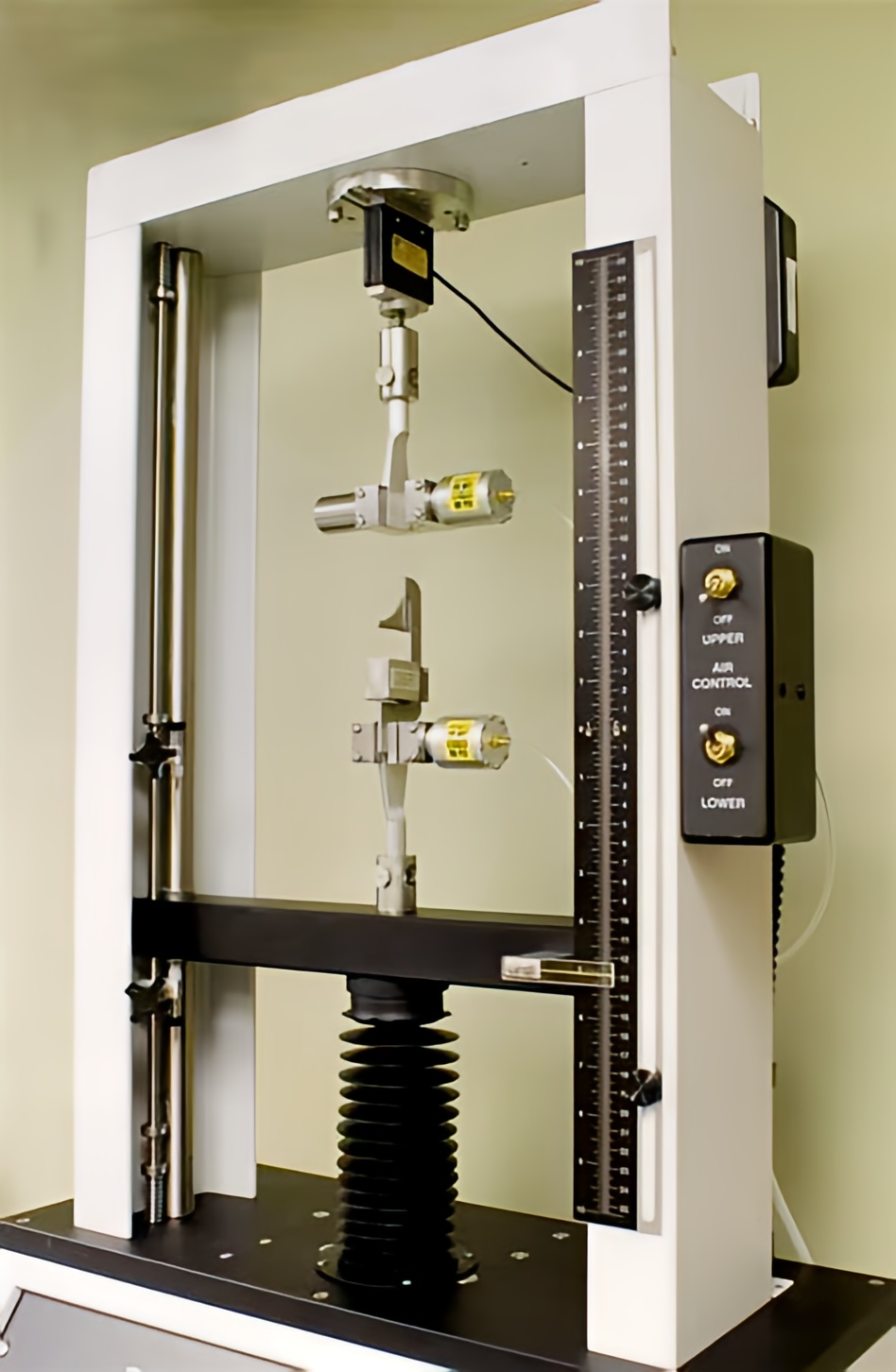

Universal Testing Machine (UTM)
Used for tensile, compression, bending, and shear tests.
Parameter | Specification |
Capacity | 1 kN to 2000 kN |
Load Cell Accuracy | ±0.5% of reading |
Crosshead Speed | 0.01 to 500 mm/min |
Control System | Manual / Servo / PLC with PC Software |
Travel (Crosshead) | Up to 1000 mm or more |
Test Types | Tensile, Compression, Flexural, Peel, Tear |
Grips | Wedge, Pneumatic, Hydraulic |
