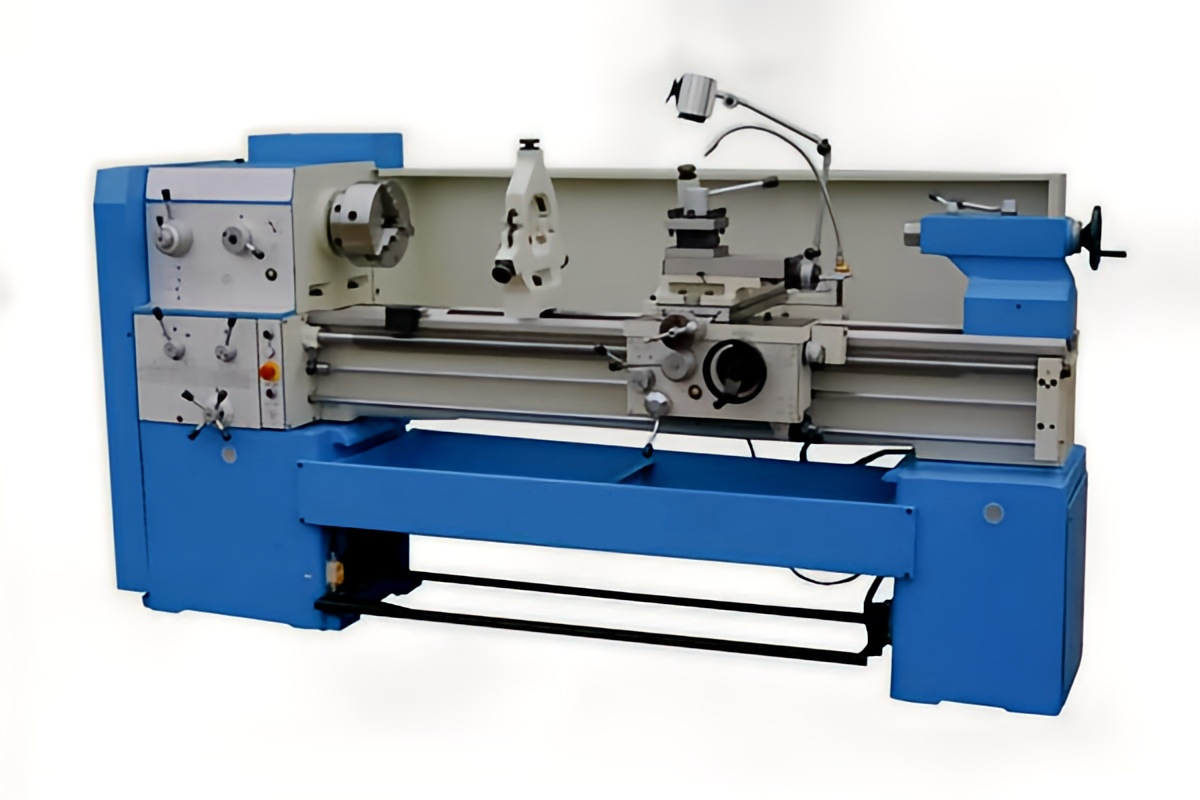

LATHE MACHINE (Conventional / Manual Type)

A lathe is a machine tool used to rotate a workpiece about a central axis while cutting, sanding, drilling, or shaping it using various tools. It’s one of the oldest and most versatile machines in metalworking and woodworking.

The primary function of a lathe is to remove material symmetrically around the axis of rotation, making it ideal for producing cylindrical, conical, or round shapes.

Specifications of LATHE MACHINE (Conventional / Manual Type)

Parameter	Specification
Machine Type	Centre Lathe / Engine Lathe
Bed Length	1500 mm to 3000 mm (5 ft to 10 ft)
Swing Over Bed	300 mm to 500 mm
Swing Over Cross Slide	150 mm to 300 mm
Distance Between Centers	750 mm to 2000 mm
Spindle Bore	38 mm to 80 mm
Spindle Nose	A2-4 / A2-6 / Camlock
Spindle Speeds	40 – 2000 RPM (variable in steps)
No. of Spindle Speed Steps	8 to 18 steps
Feed Range (Longitudinal)	0.05 mm/rev to 1.5 mm/rev
Thread Cutting	Metric & Imperial (e.g. 0.25 – 6 mm pitch)
Tailstock Quill Diameter	50 mm to 75 mm
Tailstock Quill Travel	100 mm to 150 mm
Main Motor Power	2 HP to 7.5 HP
Coolant Pump	Yes (inbuilt in most industrial models)
Machine Weight	1000 – 2500 kg
Power Supply	415V / 3 Phase / 50 Hz
