| Specification | Typical Value |
| Model Number | J50 |
| Max. Straightening Diameter | 50 mm |
| Material Application | Steel Bar, Rebar, Wire Rod |
| Straightening Speed | 30m/min – 60 m/min |
| Cutting Tolerance | pm 2 mm |
| Motor Power | 15 kW – 22 Kw |
| Cutting Method | Hydraulic or Pneumatic Shearing |
| Control System | Numerical Control (NC) or PLC |
| Total Weight (Approx.) | 2500 KG |
| Power Supply | 380 V 50Hz 3Phase |
Uncategorized

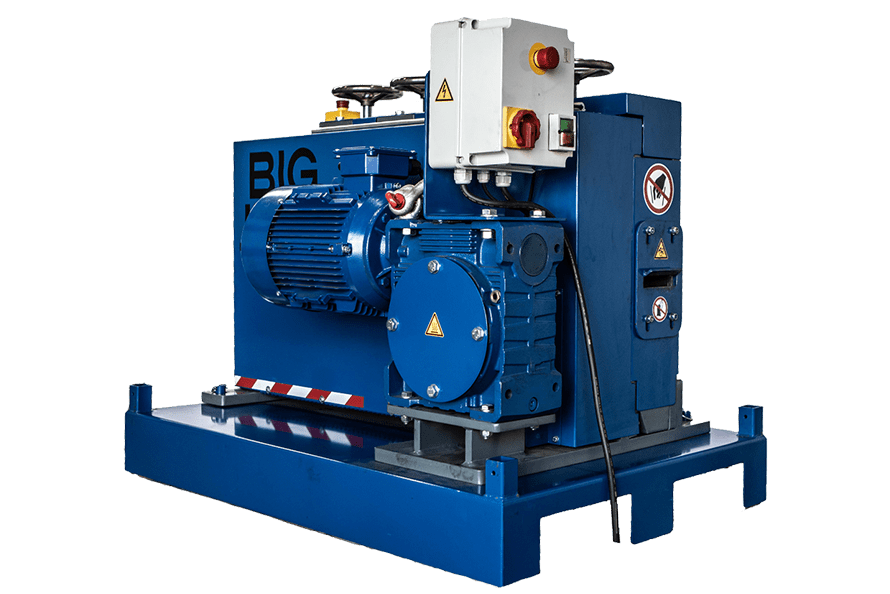

J50 STRAIGHT MACHINE
The J50 Straight Machine is an industrial-grade piece of equipment typically used for straightening and cutting metal bars, wire, or rods with a diameter up to $50 \text{ mm}$. It processes coiled material, quickly removing natural curvature (straightening), measuring the required length, and automatically cutting it. This machine is crucial for operations requiring high-volume, precise pre-cut material, such as construction (rebar) and heavy manufacturing.
